These instructions vary between models. Recognizing your product
Artome devices are equipped with two XLR microphone ports. These ports are designed to work plug-and-play with dynamic microphones.
Microphone dynamics
The input signal of the microphone inputs goes through microphone dynamics like low-pass filter, compressor and equalizer.
Additional controls
We have introduced additional controls for the microphone inputs depending on the version of your Artome device.
HW232 devices
Microphone input sensitivity can be switched between line and mic mode from Artome Connect app. There's an additional volume control in line mode. Line mode also disables the microphone dynamics.
HW231 devices
Line mode disables the microphone dynamics but the input sensitivity is mic level. There's an additional volume control in line mode.
HW20 devices

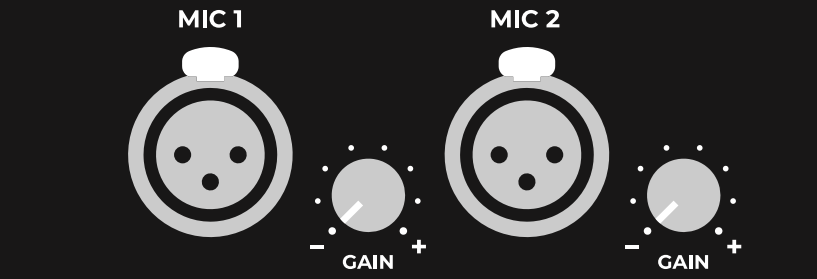

Microphone gain control knobs were added in 01/2024.
Phantom power
Artome microphone inputs don't include phantom power.
